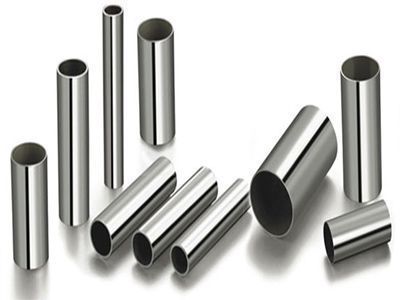

ASTM B338 Titanium Seamless and Welded Tube
Titanium grade 1 and Titanium grade 2 for Seamless and Welded Tube.
ASTM B338 Titanium Seamless and Welded Tube Suppliers
The ASTM B338 covers titanium alloy welded and seamless tube used in the chemical and petrochemical industries primarily for corrosion resistance.
ASTM B338 - Welded Seamless Tube
ASTM B338 is a titanium seamless and welded tube with outer diameter 0.3mm-10mm. The seamless tubes outer diameter range from approx 0.60mm with wall thickness 3 to 40mm are produced on plug mills. The titanium seamless tube provides outstanding corrosion resistance to sea water.
Scope And Manufacturing
ASTM B338 covers titanium welded and seamless tube. These welded tube is formed by rolling plate and welding the seam (usually by Electric resistance welding ("ERW"), or Electric Fusion Welding ("EFW"). The weld flash can be removed from both inner and outer surfaces using a scarfing blade. The weld zone can also be heat-treated to make the seam less visible. Welded tube often has tighter dimensional tolerances than the seamless type, and can be cheaper to manufacture. There are a number of processes that may be used to produce ERW tubes. Each of these processes lead to coalescence or merging of steel components into tubes. Electric current is passed through the surfaces that have to be welded together; as the components being welded together resist the electric current, heat is generated which forms the weld. Pools of molten metal are formed where the two surfaces are connected as a strong electric current is passed through the metal; these pools of molten metal form the weld that binds the two abutted components.
Seamless tube is made from hollow billet by any cold reducing or cold drawing process that will yield a product meeting the requirements. Welded tube is made from flat-rolled product by an automatic arc-welding process. The welded tube is sufficiently cold worked to final size in order to transform the cast weld microstructure into a typical equiaxed microstructure in the weld upon subsequent heat treatment. Tubing shall withstand cracking, flattening under a load applied gradually at room temperature until the distance between the load platens is not more than the required height. Welded tube shall be subjected to a reverse flattening test.
Mumbadevi Steel India (MSI) is a supplier and manufacturer of Titanium grade 2 Welded Tube, Titanium grade 1 Seamless Tube, Titanium grade 2 Seamless Tube, Titanium grade 1 Welded Tube. These tubes provide good resistant to corrosion in water and pressure enviornments hence used in heat exchangers, tanks, process vessels, valves, etc.
ASTM B338 specification covers Titanium Alloy Seamless Tube and Welded Tube. These tubes have very high tensile strength and toughness, hence used in aircraft, spacecraft, etc.
Other Names : ASTM B338 UNS R50250, ASTM B338 UNS R50400, Titanium Grade 1 Seamless Welded Pipe, Titanium Grade 2 Seamless Welded Pipe, Titanium Seamless Welded Pipe.
Material : Titanium grade 1 and Titanium grade 2
Brand : Mumbadevi Steel India (MSI)
Manufacturer : Mumbadevi Steel India (MSI)
Our Inventory of ASTM B338 Material
- ASTM B338 UNS R50250
- ASTM B338 UNS R50400
