Grade 2 Titanium Pipe Fittings
Mumbadevi Steel India (MSI) is a suppliers of ASTM B381 Titanium Grade 2 Pipe Fittings for indutrial use.
Other Names: ASTM B381 UNS R50400, Titanium Pipe Fittings, Titanium Fittings, Titanium Buttweld Fittings, ASTM B381 Fittings
Material: Grade 2 Titanium
Brand: Mumbadevi Steel India (MSI)
Manufacturer: Mumbadevi Steel India (MSI)
ASTM B381 • Titanium Fittings • Grade 2 Titanium Pipe Fittings • Tee • Cross • Elbow
Mumbadevi Steel India (MSI) is one of the most trusted suppliers of Titanium Pipe Fittings as per ASTM B381 manufactured as per ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MSS-SP-43, MSS-SP-75 standards. We have to ensure that all our Titanium products offer the utmost strength, durability and reliability amongst extreme environments. The ability of this alloy is the reason for its major use in oil and gas, offshore and in the aerospace industries.
A fitting is used in pipe systems to connect straight pipe or tubing sections, adapt to different sizes or shapes and for other purposes, such as regulating fluid flow. Pipe Fittings are used in a piping system to change direction or function, which is mechanically joined to the system. The simplest way to achieve this is to bend the pipe in the direction required, but this process will stretch and thin the outer wall of the pipe whilst thickening and wrinkling, the inner wall of the pipe. This results in flow resistance and accelerated wall erosion. Grade 2 Titanium Pipe Fittings are manufactured and finished according to international standards ASTM B381 UNS R50400, ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MSS-SP-43 & MSS SP-75. Our range of Grade 2 Titanium buttweld fittings includes Elbows, Tees, Cross, Cap, Reducers, Collars, Bends in all sizes and forms.

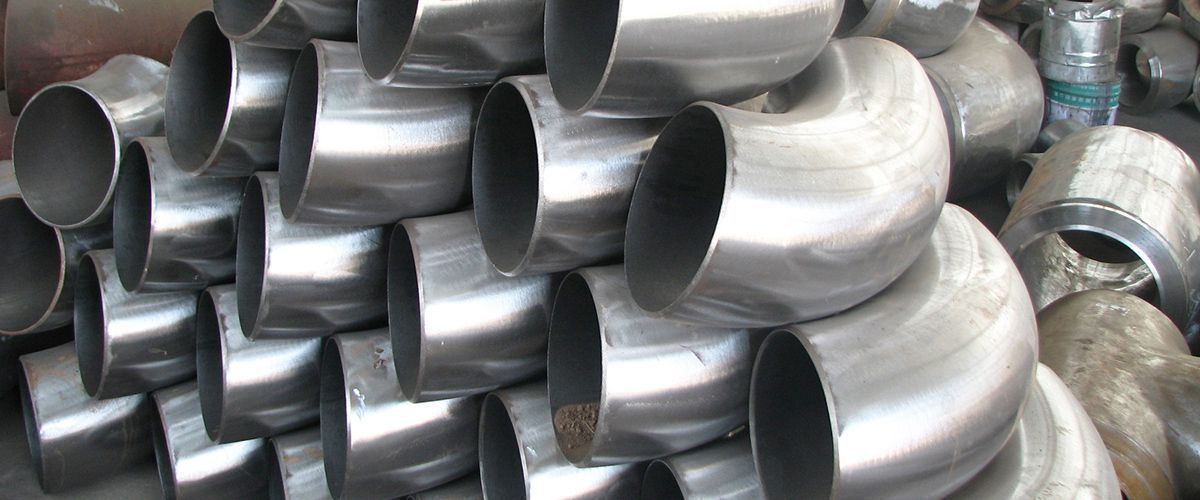

Titanium Elbow Fittings—Titanium Pipe Elbows are installed between two lengths of pipe or tube allowing a change of direction by 180°, 90° or 45°. The ends are machined for Butt Welding when the two ends differ in size, it is called a Reducer or, Reducing Elbow. Pipe Fitting Elbows are available as 180° elbows, 90° elbows or 45° elbows in 1D, 1.5D, 2D, 3D, 5D, 6D, 8D, 10D radius as short and long radius elbows. All ASTM B381 elbows are mandrel formed to ensure consistency.
Titanium Return Bend Fittings— Bends are similar to elbows with different bending radiuses. ASTM B381 Bends are supplied as long radius return bends and short radius return bends.
Titanium Pipe Cross Fittings—Pipe Fitting Cross are used in several industries for providing the leak free and torque free sealing in any piping or tubing connection known for their close tolerances.
Titanium Cap Pipe Fittings—The function of a Pipe Cap is to block off the end of a line in an industrial piping system. Pipe Cap is fitted by placing the end cap over the open line and welding around the joint.
Titanium Tee Pipe Fittings—Pipe Fitting Tee is widely used in industrial piping systems to merge or divide fluids and do not require special tubing preparation before installation. Tees are available in different threading specifications and are engineered to close tolerances and precise dimensions.
Titanium Stub Ends Pipe Fittings—Stub Ends are installed in pairs and mated together with two Lap-Joint Flanges. The surface of the stub end has a phonographic serrated gasket surface which prevents leakage at the joint. Using stub ends allows sections of the line to be opened for cleaning, inspection or quick replacement, etc, without the need to re-weld.
Titanium Pipe Reducer Fittings— Reducers are supplied as Eccentric Reducer, Concentric Reducer and Conical Reducer or Bell Shaped Reducer.
Titanium Pipe Coupling— Couplings are used to merge two equal ends in a piping system. Couplings are classified as half-coupling and full-coupling.
Titanium Pipe Fittings manufactured by Mumbadevi Steel India (MSI) are designed for high performance under extreme environments. Moreover, our Pipe Fittings have wall thickness designed with ample erosion and corrosion allowance .We stock a full range of Titanium Gr 2 Pipe Fittings in sizes 1/8” NB to 24" NB in SCH5, SCH10, SCH40, SCH80, SCH160, SCH XS, SCH XXS. We have a huge inventory of buttweld fittings in various forms such as End Cap, Stub Ends, Pipe Nipple, Equal Tee, Unequal Tee, Concentric Reducer, Eccentric Reducer, Collar, Long Radius Elbow, Short Radius Elbow, Return Bend, Elbow, Coupling. All our products are tested under expert supervision and test documents such as Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non-Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports are provided. Pipe Fittings have a variety of applications in Oil, Gas, Filtration, Refrigeration, Refining, Petrochemical, and Offshore Industries. We have been exporting buttweld fittings in many countries such as Australia, Saudi Arabia, South Africa, Iraq, Iran, UAE, USA, Russia, Germany, Thailand, Uk, etc.
- Pipe Fittings Specification: ASTM B381 UNS R50400, ASME SB381 UNS R50400 & DIN 3.7035
- Dimenison Standards: ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MSS-SP-43, MSS-SP-75
- Thickness Range: 2.77mm to 59.64mm
- Outside Diameter(OD): 2.77mm to 59.64mm
- Type: Seamless Pipe Fittings, Welded Pipe Fittings
- Forms: Grade 2 Titanium Long Radius Elbow, Grade 2 Titanium Short Radius Elbow, Grade 2 Titanium Long Radius Return Bend, Grade 2 Titanium Short Radius Return Bend, Grade 2 Titanium Reducing Elbow, Grade 2 Titanium End Cap, Grade 2 Titanium Stub Ends, Grade 2 Titanium Pipe Nipple, Grade 2 Titanium Equal Tee, Grade 2 Titanium Unequal Tee, Grade 2 Titanium Pipe Cross, Grade 2 Titanium Reducing Cross, Grade 2 Titanium Cross, Grade 2 Titanium Concentric Reducer, Grade 2 Titanium Eccentric Reducer, Grade 2 Titanium pipe Collar, Grade 2 Titanium Pipe Coupling
- Size Range: 1/8” NB to 24" NB in SCH 5, SCH10, SCH40, SCH80, SCH160, SCH XS, SCH XXS
- Bending Radius: 1D, 1.5D, 2D, 3D, 5D, 6D, 8D, 10D
- Origin: Indian Origin, European Origin, Japanese Origin
- Testing and Documents: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
- Packing: Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests
Titanium Fittings Sizes in Stock
|Forms of Pipe Fttings||Pipe Fitting Size Range||Schedules of Butt weld fittings||Dimension Standards|
|Seamless Pipe Fittings||Welded Pipe Fittings|
|Titanium Return Bends||1/8” NB to 8" NB||SCH 5, SCH 5S, SCH 10, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 40, SCH STD, SCH 60, SCH 80s, SCH 100, SCH 120, SCH XS, SCH XXS, SCH 160, upto 50mm in case of Welded Fittings||ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MS SP 75|
|Titanium Tees||1/8” NB to 24" NB||Upto 42" NB|
|Titanium Reducers||1/8” NB to 24" NB||Upto 42" NB|
|Titanium End Caps||1/8” NB to 24" NB||Upto 42" NB|
|Titanium Swage Nipple||2 1/16” to 30”|
|Titanium Elbows — 45, 90 & 180 Degree||1/8” NB to 24" NB||Upto 42" NB|
|Titanium Cross||1/8” NB to 8" NB|
Forms of ASTM B381 Fittings in Stock
Long Radius Pipe Elbows
ASTM B381 Fittings — Grade 2 Titanium Long Radius Elbows up to 24" NB in smls and 42" NB in Welded Range
Short Radius Pipe Elbows
Grade 2 Titanium Short Radius Elbows As Per ASTM B381 Available up to 24" NB in smls and 42" NB in welded Range
Long Radius Return Bends
Grade 2 Titanium Long Radius Return Bend Available up to 24" NB in smls and 42" NB in welded Range
Short Radius Return Bends
Grade 2 Titanium Short Radius Return Bend Available up to 24" NB in smls and 42" NB in welded Range
Reducing Elbow Pipe Fittings
Grade 2 Titanium Reducing Elbows Available in 1/8” NB to 24" NB Range As Per ASTM B381
Grade 2 Titanium Pipe Caps Available up to 24" NB in smls and 42" NB in welded Range
Stub Ends — Pipe Fittings
Grade 2 Titanium Pipe Fittings Stub Ends Available up to 24" NB in smls and 42" NB in welded Range
Pipe Fitting Nipple
Grade 2 Titanium Nipple Available As Per ASTM B381 Standard
Grade 2 Titanium Equal Tee — Buttweld Fittings ASME SB381 UNS R50400
Grade 2 Titanium Unequal Tee — Buttweld Fittings Manufacturer and Supplier
Pipe Fittings Cross
ASTM B381 UNS R50400 Pipe Fittings Grade 2 Titanium Cross Supplier
Concentric, Eccentric Reducer
Grade 2 Titanium Concentric, Eccentric Reducer Buttweld Fittings in from SCH 5 to SCH XXS
Collar Pipe Fittings
Grade 2 Titanium Collar Pipe Fitting ASTM B381
Coupling — Fittings
ASTM B381 UNS R50400 — Grade 2 Titanium Coupling Available up to 24" NB in smls and 42" NB in welded Range
C Fe H N O Ti MIN - - - - - Bal MAX 0.100 0.300 0.015 0.030 0.250 -
(% in 50mm)
MIN 345 485 28.00 160 MAX 200
Density g/cm³ 4.5 lb/ft³ 280 Modulus of elasticity GPa 100 Psi 15 x 10-6 Thermal conductivity W/m°C 20 Sheer Modulus GPa 39 Poissons ratio 0.32
Properties of Grade 2 Titanium alloy
Titanium GR 2 Cold Forming
Cold working features of this material is same as that of a moderately tempered austenitic stainless steel. Post-work annealing is recommended to prevent tearing or other material damage.
Titanium GR 2 Hot Forming
Hot working Ti GR 2 enhances the overall ductility of the material.
Titanium GR 2 Annealing
Titanium GR 2 annealed by Heating it to 704 C (1300 F) and then holding it for 2 hours followed by air cooling. For intermediate stress relieving, the material has to be heated to 482°C (900°F) for 45 min.
Titanium GR 2 Welding
Titanium Grade 2 possesses good weldability and can be welded by a wide variety of traditional fusion and solid-state methods.
Titanium GR 2 Heat Treatment
Not hardenable by heat treatment.
Services We Offer
Documentation is a very important part of the products we supply, and we work continuously to enhance the efficiency of the document-handling process without compromising quality of the product. Documents provided along with the shipment include Certificate of Origin, Material Test Certificate as per EN 10204 3.1 and 10204 3.2, NACE MR10103 and NACE MR0175 certified Test Certificates.
Titanium Buttweld Fittings are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
PMI Testing, Ultrasonic Test, Mechanical Testing, Spectro Tests for Chemical Analysis of the grade, Flaring Test, IGC, etc. are some of the tests conducted at our facility. We welcome stage wise inspection from any of your representative or third party inspection agencies.
Packing and Delivery
The product is wrapped and packed in wooden crates or carton boxes. Our primary goal is to deliver quality products in time, no matter where the client is located.
