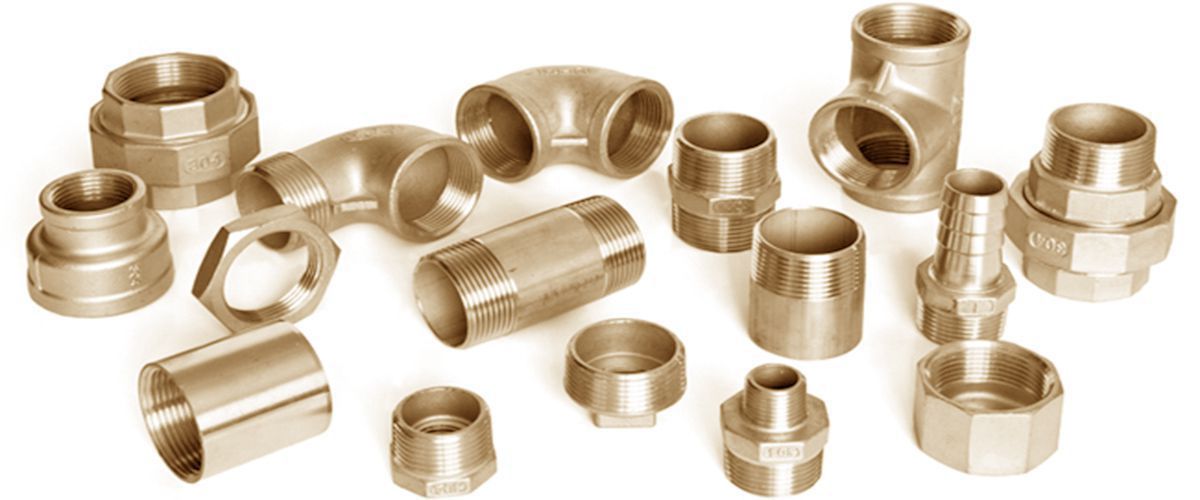

70 30 CuNi Forged Fittings

ASTM B151 UNS C71500 • Copper Nickel Fittings • Copper Nickel Outlets • Copper Nickel Socket weld Fittings • Copper Nickel Threaded Fittings • ASTM B151 Fittings

Mumbadevi Steel India (MSI) is an ISO certified company with stocks of 70 30 Copper Nickel Forged Fittings as per ASTM B151 and dimension standards ASME B16.11, ANSI B16.9 and BS 3799. 70 30 Copper Nickel Fittings are widley used in sea-water environments demanding high strength.

Mumbadevi Steel India (MSI) is a specialist of Copper Nickel Socket weld Fittings, Copper Nickel Threaded Fittings and Copper Nickel Outlets. We have a varied stock of Copper Nickel forgings and fittings.

Socket Weld Elbow & Threaded Elbow — Socket Weld Elbow and Threaded Elbow Fitting is a fitting installed between two lengths of pipe or tubing allowing a change of direction, usually 180°, 90° or 45°. Copper Nickel Elbows are available in short and long radius types. The ends can be machined for screwed or socketed. When the two ends differ in size, it is called a Reducing Elbow or Reducer Elbow.

Socket Weld Tee & Threaded Tee — We supply SocketWeld Tee & Threaded Tee for use in industrial applications. Copper Nickel Tees are used to combine or split a fluid flow. The most common Socket Weld and Threaded Tees have the same inlet and outlet sizes.

Socket Weld Cross & Threaded Cross — Crosses are used as junctions in piping systems. Manufactured as per ASME B16.11 BS3799 dimension standards Copper Nickel crosses are available in all size ranges.

Socket Weld Plug & Threaded Plugs — Plugs are similar to Caps in the application. Some forms of Threaded Plugs supplied by us are Square Head plug, Round Head plug and Hex Head plug.

Socket Weld Couplings & Threaded Couplings — Couplings fitting are used to connects two pipes to each other. Reducing Couplings can be used if the material and size of the pipe differ.

Socket Weld Cap & Threaded Caps — Cap are used to seal the end of the pipe to stop the flow of liquid or gas flowing through the pipe. Similar to plugs, Caps are available as Socket Weld Caps and Threaded Caps.

Socket Weld Union & Threaded Union — Unions Fittings are similar to Couplings. Manufactured as per ASME B16.11, ANSI B16.9, BS 3799 Standards. Socket weld Union and Threaded Unions are available in stock.

Threaded Pipe Nipple Fittings — Threaded Nipples are used to connect two ends of fittings. Pipe Nipples are also known as Barrel Nipples.

70 30 CuNi Outlets — Branch type connections in a piping system are known as outlets. Our inventory of Branch Outlets includes Buttweld Outlet, Elbow Outlet, Lateral Outlet, Nipple Outlet available in BW/SW/NPT and other outlets such as Insert Branch Outlets, Flange Buttweld Outlet, Flange Nipple, Outlet commonly used in oil, gas, power and nuclear industry pipe systems.

Mumbadevi Steel India (MSI) manufactures High-quality Copper Nickel Fittings conforming to international standards and specifications ASME B16.11, ANSI B16.9, BS 3799. With over 30 years experience providing fitting solutions for a wide variety of applications, our products are guaranteed to be dependable and help you achieve the highest degree of efficiency. The size range of Socket Weld Fittings are 1/8" NB to 4" NB in Class 3000lbs and 6000lbs, Threaded Fittings are 1/8" NB to 4" NB in Class 2000lbs, 3000lbs and 6000lbs and that of Outlets are 1/2" to 14". We have exported Forged Fittings in many countries namely Albania, Andorra, Belarus, Bosnia, Croatia, European Union, Faroe Islands, Gibraltar, Guerney and Alderney, Iceland, Jersey, Kosovo, Liechtenstein, Macedonia, Man, Island of Moldova, Monaco, Montenegro, Norway, Russia, San Marino, Serbia, Svalbard and Jan Mayen Islands, Switzerland, Turkey, Ukraine, Vatican City State (Holy See), Anguilla, Antigua and Barbuda, Aruba, Bahamas, Barbados, Bonaire, Saint Eustatius and Saba, British Virgin Islands, Cayman Islands, Cuba, Curaçao, Dominica, Dominican Republic, Grenada, Guadeloupe, Haiti, Jamaica, Martinique, Monserrat, Puerto Rico, Saint-Barthélemy, St. Kitts and Nevis, Saint Lucia, Saint Martin, Saint Vincent and the Grenadines, Sint Maarten, Trinidad and Tobago, Turks and Caicos Islands, Virgin Islands (US), Belize, Costa Rica, El Salvador, Guatemala, Honduras, Mexico, Nicaragua, Panama, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Falkland Islands (Malvinas), French Guiana, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela, Bermuda, Canada, Greenland, Saint Pierre and Miquelon, Burundi, Comoros, Djibouti, Eritrea, Ethiopia, Kenya, Madagascar, Malawi, Mauritius, Mayotte, Mozambique, Reunion, Rwanda, Seychelles, Somalia, Tanzania, United Republic of Uganda, Zambia, Zimbabwe, Angola, Cameroon, Central African Republic, Chad, Congo (Brazzaville), Congo, Democratic Republic of the Equatorial Guinea, Gabon, Sao Tome and Principe, Algeria, Egypt, Libyan Arab Jamahiriya, Morroco, South Sudan, Sudan, Tunisia, Western Sahara, Botswana, Lesotho, Namibia, South Africa, Swaziland, Benin, Burkina Faso, Cape Verde, Cote d’Ivoire (Ivory Coast), Gambia, Ghana, Guinea, Guinea-Bissau, Liberia, Mali, Mauritania, Niger, Nigeria, Saint Helena, Senegal, Sierra Leone, Togo, Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gree, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovenia, Spain, Sweden, United Kingdom, Afghanistan, Armenia,

• Forged Fittings Specification: ASTM B151 UNS C71500, ASME SB 151 UNS C71500, EN 12164 & DIN 2.9882
• Dimension Standard: ASME B16.11, ANSI B16.9, BS 3799
• Socket Weld Fittings Size Range: 1/8" NB to 4" NB in Class 3000lbs & 6000lbs
• Threaded Fittings Size Range: 1/8" NB to 4" NB in Class 2000lbs, 3000lbs & 6000lbs
• Outlets Size Range: 1/2" to 14"
• Type: Forged Fittings, Threaded Fittings, Socket-weld Fittings, Outlets
• Forms: 70 30 CuNi Socket Weld Elbow, 70 30 CuNi Threaded Elbow, 70 30 CuNi Socket Weld Tee, 70 30 CuNi Threaded Tee, 70 30 CuNi Socket Weld Cross, 70 30 CuNi Threaded Cross, 70 30 CuNi Socket Weld Coupling, 70 30 CuNi Threaded Coupling, 70 30 CuNi Socket Weld Cap, 70 30 CuNi Socket Weld Hex Nipple, 70 30 CuNi Threaded Hex Nipple, 70 30 CuNi Socket Weld Boss, 70 30 CuNi Threaded Boss, 70 30 CuNi Socket Weld Union, 70 30 CuNi Threaded Union, 70 30 CuNi Threaded Cap, 70 30 CuNi Socket Weld Plug, 70 30 CuNi Threaded Plug, 70 30 CuNi Socket Weld Bushing, 70 30 CuNi Threaded Bushing, 70 30 CuNi Sockolet, 70 30 CuNi Sockolet, 70 30 CuNi Weldolet, 70 30 CuNi Threadolet, 70 30 CuNi Coupling, 70 30 CuNi Boss, Buttweld Outlet(O’Let) - BW/SW/NPT, 70 30 CuNi Elbow Outlet- BW/SW/NPT, 70 30 CuNi Lateral Outlet- BW/SW/NPT, 70 30 CuNi Nipple Outlet- BW/SW/NPT, 70 30 CuNi Insert Branch Outlet, 70 30 CuNi Flange Outlet, 70 30 CuNi Flange Outlet
• Origin: Indian Origin, European Origin, Japanese Origin
• Testing and Documents: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
• Packing: Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

70 30 CuNi Alloy Forged Fitting Sizes in Stock

Properties of 70 30 CuNi alloy

70 30 Copper-Nickel Cold Forming and Hot Forming

With good hot and cold working properties, copper nickel alloy responds well to most fabrication processes. Due to properties inherited from Copper, Copper-Nickel alloy is can be easily drawn and spin.

70 30 Copper-Nickel Machining

Copper-nickels can be cut using most conventional cutting processes. Plasma-arc cutting is fast, accurate and economical. Laser and abrasive water jet cutting are also possible The machinability rating of 70 30 copper-nickel alloy is 20%.

70 30 CuNi Welding

Copper Nickel Alloys can be easily joined by soldering, brazing and a variety of welding methods such as gas shielded arc welding, spot welding, coated metal arc welding, butt welding, seam welding, brazing, soldering and oxyacetylene welding processes.

70 30 CuNi Corrosion Resistance

Copper-nickel Alloys have good resistance to chloride pitting and crevice corrosion. They have excellent corrosion resistance against moisture, non-oxidising acids, alkalis and salt solutions, organic acids and to gases such as oxygen, chlorine, hydrogen chloride, hydrogen fluoride, sulphur dioxide and carbon dioxide. It is found that the corrosion rates of CuNi alloys are 0.02-0.002mm/year in sea-water.

Services We Offer

Documentation

Documentation is a very important part of the products we supply, and we work continuously to enhance the efficiency of the document-handling process without compromising quality of the product. Documents provided along with the shipment include Certificate of Origin, Material Test Certificate as per EN 10204 3.1 and 10204 3.2, NACE MR10103 and NACE MR0175 certified Test Certificates.

Quality Assurance

Copper Nickel Fittings and Forgings are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.

Material Testing

PMI Testing, Ultrasonic Test, Mechanical Testing, Spectro Tests for Chemical Analysis of the grade, Flaring Test, IGC, etc. are some of the tests conducted at our facility. We welcome stage wise inspection from any of your representative or third party inspection agencies.

Packing and Delivery

The product is wrapped and packed in wooden crates or carton boxes. Our primary goal is to deliver quality products in time, no matter where the client is located.
