45° Short Radius Elbow

45° Short Radius Elbow Pipe Fitting Supplier

45° Short Radius Elbow Supplier Mumbadevi Steel India (MSI) is Certified and PED Approved Company, specializes in grades such as Inconel 45° Short Radius Elbow, Incoloy 45° Short Radius Elbow, Monel 45° Short Radius Elbow, Hastelloy 45° Short Radius Elbow, Stainless Steel 45° Short Radius Elbow, Titanium 45° Short Radius Elbow, Duplex 2205 45° Short Radius Elbow, Super Duplex 45° Short Radius Elbow, Copper Nickel 45° Short Radius Elbow, Alloy 20 45° Short Radius Elbow, Nickel 200 45° Short Radius Elbow, 254 SMO 45° Short Radius Elbow, Brass 45° Short Radius Elbow, AISI 4130 45° Short Radius Elbow.

90° Short Radius Elbow

90° Short Radius Elbow Pipe Fitting Supplier

90° Short Radius Elbow Supplier Mumbadevi Steel India (MSI) is Certified and PED Approved Company, specializes in grades such as Inconel 90° Short Radius Elbow, Incoloy 90° Short Radius Elbow, Monel 90° Short Radius Elbow, Hastelloy 90° Short Radius Elbow, Stainless Steel 90° Short Radius Elbow, Titanium 90° Short Radius Elbow, Duplex 2205 90° Short Radius Elbow, Super Duplex 90° Short Radius Elbow, Copper Nickel 90° Short Radius Elbow, Alloy 20 90° Short Radius Elbow, Nickel 200 90° Short Radius Elbow, 254 SMO 90° Short Radius Elbow, Brass 90° Short Radius Elbow, AISI 4130 90° Short Radius Elbow.

45° Short Radius Elbow ASME B16.5

Short Radius Elbow Pipe Fittings | 45° Short Radius Elbow | 90° Short Radius Elbow

  • Size: Diameters – from 21,3 to 711 mm and Wall Thickness – from 2 to 40 mm.
  • Schedule: Sch 5, Sch 10, Sch 20, Sch 10, Sch 20, Sch 30, Sch TD, Sch 40, Sch 40, Sch 60, Sch X, Sch 80, Sch 80, Sch 100, Sch 120, Sch 140, Sch 160, Sch XXS and etc.
  • Types: 45° Short Radius Elbow, 90° Short Radius Elbow, Butt Weld (BW).
  • Standard: ANSI B16.9, ASTM A403/ASME SA403, API 590-605, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
  • Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313.
  • Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case.
  • Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized.
  • Value Added Services: CNC Machining, Customised Flanges.
  • Application: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
  • Material: Inconel, Incoloy, Monel, Hastelloy, Copper Nickel, Alloy 20, Nickel 200, Nickel 201, AISI 4130, Titanium, Brass, Stainless Steel, Duplex 2205, Super Duplex, SMO 254.

45° Short Radius Elbow Supplier | 90° Short Radius Elbow Supplier | AISI B16.9 Short Radius Pipe Elbow

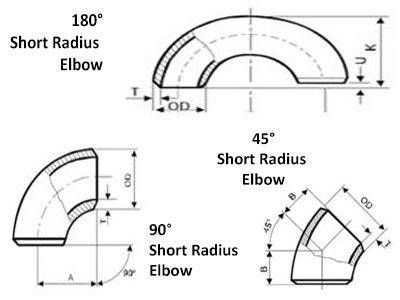

Short Radius Elbow is a type of pipe fitting which is used as a connection point between two lengths of pipes to produce a change in the direction of flow in the pipe, usually at an angle of 90°, 45° or 180°. The short radius elbows have a center to end distance that is 1.5 times the NPS in inches (R=1.5D), while the short radius is equal to the NPS in inches (R=1.0D). Short radius elbows are generally used in tight areas, and short radius elbows are used when space is available and flow is more critical. Mumbadevi Steel India (MSI) can also manufacture and supply carbon steel elbows and stainless steel elbows in non-standard size angles such as 60°, 100°, 120° or 150°. The ends of may be machined for butt welding, threaded (usually female), or socketed, etc. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow. Mumbadevi Steel India (MSI) can manufacture elbows with Nominal Pipe Sizes ranging from 1/2" to 48". Wall Thickness of 45° and 90° Short Radius Elbow Not less than 87.5% of Nominal Wall Thickness. Schedule ranging from Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Mumbadevi Steel India (MSI) is Certified and Ped Approved leading manufacturer and supplier of Short Radius Elbows as per ANSI B16.9 Pipe Fitting or Buttweld Fittings standard. ASME B16.9 Short Radius Elbows supplied bY Mumbadevi Steel India (MSI) in forms like 45° Short Radius Elbows and 90° Short Radius Elbows. Mumbadevi Steel India (MSI) offer Short Radius Pipe Fitting Elbows with complete certifications and as per national as well as international standards. Mumbadevi Steel India (MSI) supplies AISI B16.9 Short Radius Elbow Pipe Fitting in grades like 254 smo short radius elbow, ss 304 short radius elbow, ss 304h short radius elbow, ss 309 short radius elbow, ss 310 short radius elbow, ss 316h short radius elbow, ss 316l short radius elbow, ss 316ti short radius elbow, ss 317l short radius elbow, ss 321h short radius elbow, ss 321 short radius elbow, ss 330 short radius elbow, ss 347h short radius elbow, ss 347 short radius elbow, aisi 4130 short radius elbow, ss 904l short radius elbow, copper nickel short radius elbow, cupro nickel short radius elbow, duplex 2205 short radius elbow, hastelloy alloy b2 short radius elbow, hastelloy alloy c22 short radius elbow, hastelloy alloy c276 short radius elbow, incoloy alloy 800 short radius elbow, incoloy alloy 825 short radius elbow, inconel alloy 600 short radius elbow, inconel alloy 601 short radius elbow, inconel alloy 625 short radius elbow, monel alloy 400 short radius elbow, nickel alloy 200 short radius elbow, nickel alloy 20 short radius elbow, super duplex 2507 short radius elbow, super duplex 4501 short radius elbow, titanium grade 1 short radius elbow, titanium grade 2 short radius elbow.

Available Materials

Short Radius Elbow Pipe Fittings Supplier, Manufacturer and Exporter

Short Radius Elbow Pipe Fittings also known as 45° and 90° Short Radius Elbow Fittings or Short Radius Elbow Pipe Fittings, supplied by Mumbadevi Steel India (MSI) in more than 70 countries like Short Radius Elbow Pipe Fittings supplier in United States, Short Radius Elbow Pipe Fittings supplier in Germany, Short Radius Elbow Pipe Fittings supplier in China, Short Radius Elbow Pipe Fittings supplier in South Korea, Short Radius Elbow Pipe Fittings supplier in Italy, Short Radius Elbow Pipe Fittings supplier in France, Short Radius Elbow Pipe Fittings supplier in Thailand, Short Radius Elbow Pipe Fittings supplier in Canada, Short Radius Elbow Pipe Fittings supplier in Netherlands, Short Radius Elbow Pipe Fittings supplier in Mexico, Short Radius Elbow Pipe Fittings supplier in Turkey, Short Radius Elbow Pipe Fittings supplier in Belgium, Short Radius Elbow Pipe Fittings supplier in Saudi Arabia, Short Radius Elbow Pipe Fittings supplier in India, Short Radius Elbow Pipe Fittings supplier in Poland, Short Radius Elbow Pipe Fittings supplier in United Arab Emirates, Short Radius Elbow Pipe Fittings supplier in Indonesia, Short Radius Elbow Pipe Fittings supplier in Japan, Short Radius Elbow Pipe Fittings supplier in United Kingdom, Short Radius Elbow Pipe Fittings supplier in Taiwan, Short Radius Elbow Pipe Fittings supplier in Spain, Short Radius Elbow Pipe Fittings supplier in Vietnam, Short Radius Elbow Pipe Fittings supplier in Malaysia, Short Radius Elbow Pipe Fittings supplier in Russian Federation, Short Radius Elbow Pipe Fittings supplier in Czech Republic.

Mumbadevi Steel India (MSI) is Certified and CRISIL MSE 4 Rated leading supplier, manufacturer and exporter of 45° and 90° Short Radius Elbow Fittings in grades like Inconel Short Radius Elbow Pipe Fittings, Incoloy Short Radius Elbow Pipe Fittings, Monel Short Radius Elbow Pipe Fittings, Hastelloy Short Radius Elbow Pipe Fittings, Copper Nickel Short Radius Elbow Pipe Fittings, Alloy 20 Short Radius Elbow Pipe Fittings, Nickel 200 Short Radius Elbow Pipe Fittings, Nickel 201 Short Radius Elbow Pipe Fittings, AISI 4130 Short Radius Elbow Pipe Fittings, Titanium Short Radius Elbow Pipe Fittings, Brass Short Radius Elbow Pipe Fittings, Stainless Steel Short Radius Elbow Pipe Fittings, Duplex 2205 Short Radius Elbow Pipe Fittings, Super Duplex Short Radius Elbow Pipe Fittings, SMO 254 Short Radius Elbow Pipe Fittings. 45° and 90° Short Radius Elbow Fittings used in Oil and Gas Pipeline, 45° and 90° Short Radius Elbow Fittings used in Chemical Industry, 45° and 90° Short Radius Elbow Fittings used in Plumbing, 45° and 90° Short Radius Elbow Fittings used in Heating, 45° and 90° Short Radius Elbow Fittings used in Water Supply Systems, 45° and 90° Short Radius Elbow Fittings used in Power Plant, 45° and 90° Short Radius Elbow Fittings used in Paper and Pulp Industry, 45° and 90° Short Radius Elbow Fittings used in General Purpose Applications, 45° and 90° Short Radius Elbow Fittings used in Fabrication Industry, 45° and 90° Short Radius Elbow Fittings used in Food Processing Industry, 45° and 90° Short Radius Elbow Fittings used in Structural Pipe.

Mumbadevi Steel India (MSI) not only stock certain sizes of Short Radius Elbow Pipe Fittings, but has been a reputable source for them for over thirty years. Mumbadevi Steel India (MSI) known as the best Short Radius Elbow Pipe Fittings manufacturer in India and counted among the prompt and excellent Short Radius Elbow Pipe Fittings. Short Radius Elbow Pipe Fittings offered by Mumbadevi Steel India (MSI) at competitive rates to the clients. Mumbadevi Steel India (MSI) offer Short Radius Elbow Pipe Fittings to our clients at competitive prices. Short Radius Elbow Pipe Fittings available in grades like SS 316h 45° and 90° Short Radius Elbow Fittings, SS 304h 45° and 90° Short Radius Elbow Fittings, SS 316l 45° and 90° Short Radius Elbow Fittings, Alloy 20 45° and 90° Short Radius Elbow Fittings, Hastelloy B2 45° and 90° Short Radius Elbow Fittings, Hastelloy C276 45° and 90° Short Radius Elbow Fittings, SS 321 45° and 90° Short Radius Elbow Fittings, SS 347 45° and 90° Short Radius Elbow Fittings, SS 304 304l 45° and 90° Short Radius Elbow Fittings, SS 304 304l 45° and 90° Short Radius Elbow Fittings, Incoloy 825 45° and 90° Short Radius Elbow Fittings, Hastelloy C22 45° and 90° Short Radius Elbow Fittings, SS 316ti 45° and 90° Short Radius Elbow Fittings, SS 330 45° and 90° Short Radius Elbow Fittings, Incoloy 800 45° and 90° Short Radius Elbow Fittings, Titanium Grade 1 45° and 90° Short Radius Elbow Fittings, Super Duplex 4501 45° and 90° Short Radius Elbow Fittings, SS 347h 45° and 90° Short Radius Elbow Fittings, Copper Nickel 90 10 45° and 90° Short Radius Elbow Fittings, SS 904l 45° and 90° Short Radius Elbow Fittings, SS 310 45° and 90° Short Radius Elbow Fittings, SS 321h 45° and 90° Short Radius Elbow Fittings, 254 Smo 45° and 90° Short Radius Elbow Fittings, Duplex 2205 45° and 90° Short Radius Elbow Fittings, SS 317l 45° and 90° Short Radius Elbow Fittings, Monel 400 45° and 90° Short Radius Elbow Fittings, Inconel 601 45° and 90° Short Radius Elbow Fittings, SS 309 45° and 90° Short Radius Elbow Fittings, Copper Nickel 70 30 45° and 90° Short Radius Elbow Fittings, Inconel 600 45° and 90° Short Radius Elbow Fittings, Titanium Grade 2 45° and 90° Short Radius Elbow Fittings, Aisi 4130 Steel 45° and 90° Short Radius Elbow Fittings, Nickel 200 45° and 90° Short Radius Elbow Fittings, Nickel 201 45° and 90° Short Radius Elbow Fittings, Super Duplex 2507 45° and 90° Short Radius Elbow Fittings, Inconel 625 45° and 90° Short Radius Elbow Fittings.

45° and 90° Short Radius Elbow Pipe Fittings Dimensions as per ANSI B16.9

Nominal Pipe Size
(NPS)
inch.		 Outside Diameter
at Bevel
m/m		 90 Deg Elbows
Center-to-End
m/m		 45 Deg Elbows
Center-to-End
m/m
½" 21.3 38.1 15.7
¾" 26.7 38.1 19.1
1" 33.4 38.1 22.4
1¼" 42.2 47.8 25.4
1½" 48.3 57.2 28.4
2" 60.3 76.2 35.1
2½" 73 95.2 44.4
3" 88.9 114.3 50.8
3½" 101.6 133.4 57.2
4" 114.3 152.4 63.5
5" 141.3 190.5 79.2
6" 168.3 228.6 95.2
8" 219.1 304.8 127
10" 273 381 158.8
12" 323.8 457.2 190.5
14" 355.6 533.4 222.2
16" 406.4 609.6 254
18" 457 685.8 285.8
20" 508 762 317.5
22" 558 838.2 342.9
24" 610 914.4 381
