180° Short Radius Return Bend

180° Short Radius Return Bend Pipe Fitting Supplier

180° Short Radius Return Bend Supplier Mumbadevi Steel India (MSI) is Certified and PED Approved Company, specializes in grades such as Inconel 180° Short Radius Return Bend, Incoloy 180° Short Radius Return Bend, Monel 180° Short Radius Return Bend, Hastelloy 180° Short Radius Return Bend, Stainless Steel 180° Short Radius Return Bend, Titanium 180° Short Radius Return Bend, Duplex 2205 180° Short Radius Return Bend, Super Duplex 180° Short Radius Return Bend, Copper Nickel 180° Short Radius Return Bend, Alloy 20 180° Short Radius Return Bend, Nickel 200 180° Short Radius Return Bend, 254 SMO 180° Short Radius Return Bend, Brass 180° Short Radius Return Bend, AISI 4130 180° Short Radius Return Bend.

180° Short Radius Return Bend ASME B16.5

Short Radius Return Bend Pipe Fittings | 180° Short Radius Return Bend Fitting

  • Size: Diameters – from 21,3 to 711 mm and Wall Thickness – from 2 to 40 mm.
  • Schedule: Sch 5, Sch 10, Sch 20, Sch 10, Sch 20, Sch 30, Sch TD, Sch 40, Sch 40, Sch 60, Sch X, Sch 80, Sch 80, Sch 100, Sch 120, Sch 140, Sch 160, Sch XXS and etc.
  • Types: 180° Short Radius Return Bend, Short Radius Return Bend, Butt Weld (BW).
  • Standard: ANSI B16.9, ASTM A403/ASME SA403, API 590-605, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
  • Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313.
  • Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case.
  • Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized.
  • Value Added Services: CNC Machining, Customised Flanges.
  • Application: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
  • Material: Inconel, Incoloy, Monel, Hastelloy, Copper Nickel, Alloy 20, Nickel 200, Nickel 201, AISI 4130, Titanium, Brass, Stainless Steel, Duplex 2205, Super Duplex, SMO 254.

180° Short Radius Return Bend Supplier | 180° Short Radius Return Bend Pipe Fitting | AISI B16.9 Short Radius Return Bend

Short Radius Return Bend is a type of pipe fitting which is used as a connection point between two lengths of pipes to produce a change in the direction of flow in the pipe, usually at an angle of 180°, 180° or 180°. The short radius Return Bends have a center to end distance that is 1.5 times the NPS in inches (R=1.5D), while the short radius is equal to the NPS in inches (R=1.0D). Short radius Return Bends are generally used in tight areas, and short radius Return Bends are used when space is available and flow is more critical. Mumbadevi Steel India (MSI) can also manufacture and supply carbon steel Return Bends and stainless steel Return Bends in non-standard size angles such as 60°, 100°, 120° or 150°. The ends of may be machined for butt welding, threaded (usually female), or socketed, etc. When the two ends differ in size, the fitting is called a reducing Return Bend or reducer Return Bend. Mumbadevi Steel India (MSI) can manufacture Return Bends with Nominal Pipe Sizes ranging from 1/2" to 48". Wall Thickness of 180° Short Radius Return Bend Not less than 87.5% of Nominal Wall Thickness. Schedule ranging from Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Mumbadevi Steel India (MSI) is Certified and Ped Approved leading manufacturer and supplier of Short Radius Return Bends as per ANSI B16.9 Pipe Fitting or Buttweld Fittings standard. ASME B16.9 Short Radius Return Bends supplied bY Mumbadevi Steel India (MSI) in forms like 180° Short Radius Return Bends and 180° Short Radius Return Bends. Mumbadevi Steel India (MSI) offer Short Radius Return Bends Pipe Fittings with complete certifications and as per national as well as international standards. Mumbadevi Steel India (MSI) supplies AISI B16.9 Short Radius Return Bend Pipe Fitting in grades like 254 smo short radius Return Bend, ss 304 short radius Return Bend, ss 304h short radius Return Bend, ss 309 short radius Return Bend, ss 310 short radius Return Bend, ss 316h short radius Return Bend, ss 316l short radius Return Bend, ss 316ti short radius Return Bend, ss 317l short radius Return Bend, ss 321h short radius Return Bend, ss 321 short radius Return Bend, ss 330 short radius Return Bend, ss 347h short radius Return Bend, ss 347 short radius Return Bend, aisi 4130 short radius Return Bend, ss 904l short radius Return Bend, copper nickel short radius Return Bend, cupro nickel short radius Return Bend, duplex 2205 short radius Return Bend, hastelloy alloy b2 short radius Return Bend, hastelloy alloy c22 short radius Return Bend, hastelloy alloy c276 short radius Return Bend, incoloy alloy 800 short radius Return Bend, incoloy alloy 825 short radius Return Bend, inconel alloy 600 short radius Return Bend, inconel alloy 601 short radius Return Bend, inconel alloy 625 short radius Return Bend, monel alloy 400 short radius Return Bend, nickel alloy 200 short radius Return Bend, nickel alloy 20 short radius Return Bend, super duplex 2507 short radius Return Bend, super duplex 4501 short radius Return Bend, titanium grade 1 short radius Return Bend, titanium grade 2 short radius Return Bend.

Available Materials

Short Radius Return Bend Pipe Fittings Supplier, Manufacturer and Exporter

Short Radius Return Bend Pipe Fittings also known as 180° Short Radius Return Bend Fittings or Short Radius Return Bend Pipe Fittings, supplied by Mumbadevi Steel India (MSI) in more than 70 countries like Short Radius Return Bend Pipe Fittings supplier in United States, Short Radius Return Bend Pipe Fittings supplier in Germany, Short Radius Return Bend Pipe Fittings supplier in China, Short Radius Return Bend Pipe Fittings supplier in South Korea, Short Radius Return Bend Pipe Fittings supplier in Italy, Short Radius Return Bend Pipe Fittings supplier in France, Short Radius Return Bend Pipe Fittings supplier in Thailand, Short Radius Return Bend Pipe Fittings supplier in Canada, Short Radius Return Bend Pipe Fittings supplier in Netherlands, Short Radius Return Bend Pipe Fittings supplier in Mexico, Short Radius Return Bend Pipe Fittings supplier in Turkey, Short Radius Return Bend Pipe Fittings supplier in Belgium, Short Radius Return Bend Pipe Fittings supplier in Saudi Arabia, Short Radius Return Bend Pipe Fittings supplier in India, Short Radius Return Bend Pipe Fittings supplier in Poland, Short Radius Return Bend Pipe Fittings supplier in United Arab Emirates, Short Radius Return Bend Pipe Fittings supplier in Indonesia, Short Radius Return Bend Pipe Fittings supplier in Japan, Short Radius Return Bend Pipe Fittings supplier in United Kingdom, Short Radius Return Bend Pipe Fittings supplier in Taiwan, Short Radius Return Bend Pipe Fittings supplier in Spain, Short Radius Return Bend Pipe Fittings supplier in Vietnam, Short Radius Return Bend Pipe Fittings supplier in Malaysia, Short Radius Return Bend Pipe Fittings supplier in Russian Federation, Short Radius Return Bend Pipe Fittings supplier in Czech Republic.

Mumbadevi Steel India (MSI) is Certified and CRISIL MSE 4 Rated leading supplier, manufacturer and exporter of 180° Short Radius Return Bend Fittings in grades like Inconel Short Radius Return Bend Pipe Fittings, Incoloy Short Radius Return Bend Pipe Fittings, Monel Short Radius Return Bend Pipe Fittings, Hastelloy Short Radius Return Bend Pipe Fittings, Copper Nickel Short Radius Return Bend Pipe Fittings, Alloy 20 Short Radius Return Bend Pipe Fittings, Nickel 200 Short Radius Return Bend Pipe Fittings, Nickel 201 Short Radius Return Bend Pipe Fittings, AISI 4130 Short Radius Return Bend Pipe Fittings, Titanium Short Radius Return Bend Pipe Fittings, Brass Short Radius Return Bend Pipe Fittings, Stainless Steel Short Radius Return Bend Pipe Fittings, Duplex 2205 Short Radius Return Bend Pipe Fittings, Super Duplex Short Radius Return Bend Pipe Fittings, SMO 254 Short Radius Return Bend Pipe Fittings. 180° Short Radius Return Bend Fittings used in Oil and Gas Pipeline, 180° Short Radius Return Bend Fittings used in Chemical Industry, 180° Short Radius Return Bend Fittings used in Plumbing, 180° Short Radius Return Bend Fittings used in Heating, 180° Short Radius Return Bend Fittings used in Water Supply Systems, 180° Short Radius Return Bend Fittings used in Power Plant, 180° Short Radius Return Bend Fittings used in Paper and Pulp Industry, 180° Short Radius Return Bend Fittings used in General Purpose Applications, 180° Short Radius Return Bend Fittings used in Fabrication Industry, 180° Short Radius Return Bend Fittings used in Food Processing Industry, 180° Short Radius Return Bend Fittings used in Structural Pipe.

Mumbadevi Steel India (MSI) not only stock certain sizes of Short Radius Return Bend Pipe Fittings, but has been a reputable source for them for over thirty years. Mumbadevi Steel India (MSI) known as the best Short Radius Return Bend Pipe Fittings manufacturer in India and counted among the prompt and excellent Short Radius Return Bend Pipe Fittings. Short Radius Return Bend Pipe Fittings offered by Mumbadevi Steel India (MSI) at competitive rates to the clients. Mumbadevi Steel India (MSI) offer Short Radius Return Bend Pipe Fittings to our clients at competitive prices. Short Radius Return Bend Pipe Fittings available in grades like SS 316h 180° Short Radius Return Bend Fittings, SS 304h 180° Short Radius Return Bend Fittings, SS 316l 180° Short Radius Return Bend Fittings, Alloy 20 180° Short Radius Return Bend Fittings, Hastelloy B2 180° Short Radius Return Bend Fittings, Hastelloy C276 180° Short Radius Return Bend Fittings, SS 321 180° Short Radius Return Bend Fittings, SS 347 180° Short Radius Return Bend Fittings, SS 304 304l 180° Short Radius Return Bend Fittings, SS 304 304l 180° Short Radius Return Bend Fittings, Incoloy 825 180° Short Radius Return Bend Fittings, Hastelloy C22 180° Short Radius Return Bend Fittings, SS 316ti 180° Short Radius Return Bend Fittings, SS 330 180° Short Radius Return Bend Fittings, Incoloy 800 180° Short Radius Return Bend Fittings, Titanium Grade 1 180° Short Radius Return Bend Fittings, Super Duplex 4501 180° Short Radius Return Bend Fittings, SS 347h 180° Short Radius Return Bend Fittings, Copper Nickel 90 10 180° Short Radius Return Bend Fittings, SS 904l 180° Short Radius Return Bend Fittings, SS 310 180° Short Radius Return Bend Fittings, SS 321h 180° Short Radius Return Bend Fittings, 254 Smo 180° Short Radius Return Bend Fittings, Duplex 2205 180° Short Radius Return Bend Fittings, SS 317l 180° Short Radius Return Bend Fittings, Monel 400 180° Short Radius Return Bend Fittings, Inconel 601 180° Short Radius Return Bend Fittings, SS 309 180° Short Radius Return Bend Fittings, Copper Nickel 70 30 180° Short Radius Return Bend Fittings, Inconel 600 180° Short Radius Return Bend Fittings, Titanium Grade 2 180° Short Radius Return Bend Fittings, Aisi 4130 Steel 180° Short Radius Return Bend Fittings, Nickel 200 180° Short Radius Return Bend Fittings, Nickel 201 180° Short Radius Return Bend Fittings, Super Duplex 2507 180° Short Radius Return Bend Fittings, Inconel 625 180° Short Radius Return Bend Fittings.

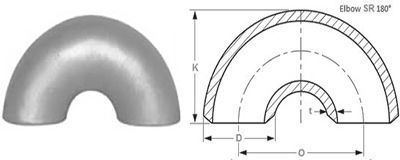

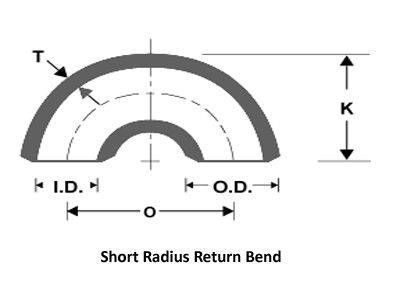

180° Short Radius Return Bend Pipe Fittings Dimensions as per ANSI B16.9

Nominal Pipe Size
inch.		 Outside Diameter
m/m		 Inside Diameter
m/m		 Wall Thickness
m/m		 Center To Center
(O) m/m		 Back To Face
(K) m/m		 Pipe Schedule Approximate Weight
(in Pounds)
½" .84 .622 .109 3.00 1.88 sch.40 .32
¾" 1.05 .824 .113 2.25 1.69 sch.40 .34
1" 1.31 1.049 .133 3.00 2.19 sch.40 .74
1¼" 1.66 1.380 .140 3.75 2.75 sch.40 1.1
1½" 1.90 1.610 .145 4.50 3.25 sch.40 1.6
2" 2.38 2.067 .154 6.00 4.19 sch.40 3.2
2½" 2.88 2.469 .203 7.50 5.19 sch.40 6.1
3" 3.50 3.068 .216 9.00 6.25 sch.40 9.4
3½" 4.00 3.548 .226 10.50 7.25 sch.40 12.8
4" 4.50 4.026 .237 12.00 8.25 sch.40 17.5
5" 5.56 5.047 .258 15.00 10.31 sch.40 29.3
6" 6.63 6.065 .280 18.00 12.31 sch.40 47
8" 8.63 7.981 .322 24.00 16.31 sch.40 87
10" 10.75 10.020 .365 30.00 20.38 sch.40 164
12" 12.75 12.000 .375 36.00 24.38 Standard Weight 237
14" 14.00 13.250 .375 42.00 28.00 sch.30 311
16" 16.00 15.250 .375 48.00 32.00 sch.30 408
18" 18.00 17.250 .375 54.00 36.00 Standard Weight 514
20" 20.00 19.250 .375 60.00 40.00 sch.20 636
22" 22.00 21.250 .375 66.00 44.00 Standard Weight 771
24" 24.00 23.250 .375 72.00 48.00 sch.20 908
26" 26.00 25.250 .375 78.00 52.00 Standard Weight 1,191
30" 30.00 29.250 .375 90.00 60.00 Standard Weight 1,541
