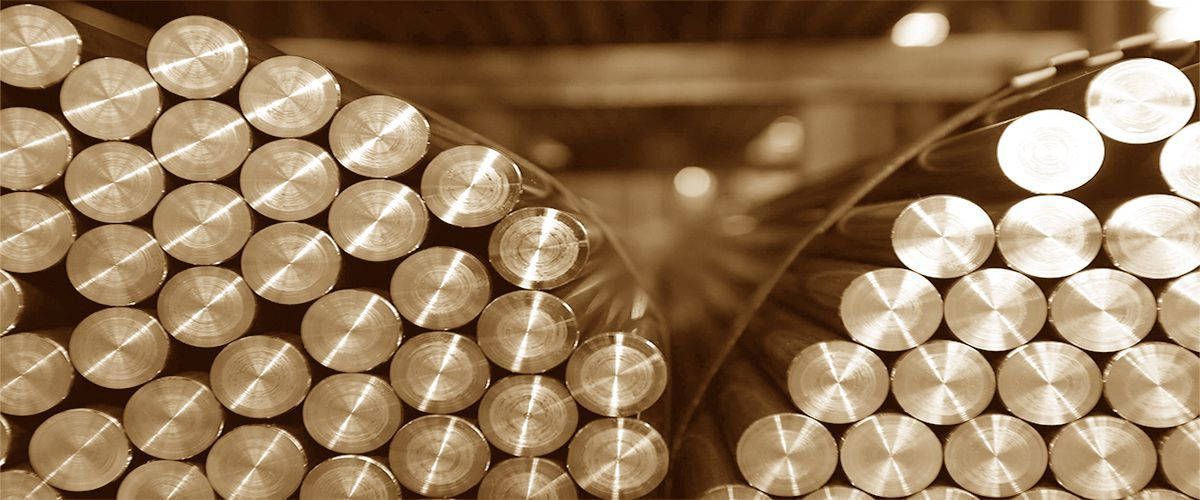

70 30 CuNi Round Bar Manufacturer

Mumbadevi Steel India (MSI) offers a comprehensive range of Copper Nickel Round Bars which is available as per ASTM B151 standard. CuNi Round Bars have a variety of applications in sub-sea and marine environments. We stock CuNi bars in all froms and sizes.
Other Names: ASTM B151 UNS C71500, Copper Nickel Bars, 70 30 CuNi Bars, Copper Nickel Round Bar, Copper Nickel Hex Bar, Copper Nickel Square Bar, Copper Nickel Flat Bar, ASTM B151 Bar
Material: 70 30 CuNi
Brand: Mumbadevi Steel India (MSI)
Manufacturer: Mumbadevi Steel India (MSI)
Rating: 4.5/5 based on 42 customer reviews

ASTM B151 UNS C71500 • Copper Nickel Round Bar • CuNi Bar suppliers • Copper Nickel Bar

Mumbadevi Steel India (MSI) keeps huge stock of 70 30 Copper Nickel Round Bars as per ASTM B151 standard. These CuNi Bars are also available in hex and flat forms. Contact us for best rates on Cupro-Nickel Bars.

Round bars are most frequently used to make parts such as gears, shafts, axles, and flywheels for rotating machinery applications. Round Bars can also be engineered and used for manufacturing of seamless pipe and tubing used in oil drilling, military, and other applications. 70 30 CuNi Round bars conform to ASTM, UNS, ASME, UNS, ANSI, EN standards and specifications. Round Bar is available in a wide variety of sizes ranging from 10 mm to 125 mm. Copper Nickel Bar available in following forms Round Bar, Hex Bars, Flat Bar, Square Bar. Round bars are typically used in Engineering Construction, Residential Construction, Non-Residential Construction, Mining Infrastructure, Transport and Storage Manufacturing.

Mumbadevi Steel India (MSI) offers a comprehensive range of Copper Nickel Bar which is available in Alloy and Stainless Steel grades. We pride ourselves on supplying Round Bar products to suit your exact requirements. Our Round bars are finished according to, En, BS, ANSI, ASME specifications. The length of the round bar is 50 mm to 6000 mm long and it can be Single Random, Double Random and Cut Length. The characteristics of high resistance to thermal oxidation, corrosion resistance and high strength in our round bar meet the requirements for use in numerous applications within the aerospace, chemical processing, thermal processing, oil & gas, pharmaceutical and bio synthetic and motorsport industries. We supply ASTM B151 round bars with diameters between 0.5 mm to 500 mm.

Our company has been exporting Copper Nickel Round bars Globally and has attained a recognition in many countries. We have exported to countries like Europe, Australia, Japan, Indonesia, South Africa, Thailand, UAE, Qatar, Uk, etc.

  • Bar Specification: ASTM B151 UNS C71500, ASME SB151 UNS C71500, EN 12164 & DIN 2.9882
  • Thickness: 50 mm to 6000 mm Long
  • Type: Copper Nickel Bar
  • Form: 70 30 CuNi Round Bar, 70 30 CuNi Hex Bars, 70 30 CuNi Flat Bar, 70 30 CuNi Square Bar
  • Length: Single Random, Double Random & Cut Length
  • Finish: Bright and Black Finish
  • Origin: Indian Origin, European Origin, Japanese Origin
  • Testing and Documents: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
  • Packing: Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

70 30 CuNi Alloy Bar Sizes in Stock

Material Diameter Length Make
70 30 CuNi Round Bar, 70 30 CuNi Flat Bar, 70 30 CuNi Hex Bar 0.5 mm to 500 mm 50 mm to 6000 mm Long Indian, European and Japanese origin

Forms of ASTM B151 UNS C71500 in Stock

Copper Nickel Round Bar Supplier

Round Bar

70 30 CuNi Round Bars available in 0.5 mm to 500 mm Diameter

70 30 CuNi Hex Bar Supplier

Hex Bar

70 30 CuNi Hex Bar ASTM B151 UNS C71500

Copper Nickel Flat Bar Supplier

Flat Bar

70 30 CuNi Flat Bar Suppliers and Manufacturer ASTM B151 UNS C71500

  • Chemical Properties
  • Mechanical Properties
  • Physical Properties
  • Cu Pb Mn Fe Zn Ni
    MIN 65.000 - - 0.400 - 29.000
    MAX 0.500 1.000 1.000 1.000 33.000
  • Yield Strength
    0.2% Proof
    (MPa)
    Tensile strength
    (MPa)
    Elongation
    (% in 50mm)
    Hardness
    (HRB)
    MIN 88 372 45.00
    MAX 483 517   51
  • Density kg/dm³ 8.95
    Melting Range °C 1170-1240
    Specific Heat J/kg °K 377
    Thermal Conductivity W/m°K 29
    Coeff. of Linear Expansion 10-300°C" 10-6/°K 16
    Electrical Resistivity microhm. cm 34
    Modulus of Elasticity GPa 152
    Modulus of Rigidity GPa 56

Properties of 70 30 CuNi alloy

70 30 Copper-Nickel Cold Forming and Hot Forming

With good hot and cold working properties, copper nickel alloy responds well to most fabrication processes. Due to properties inherited from Copper, Copper-Nickel alloy is can be easily drawn and spin.

70 30 Copper-Nickel Machining

Copper-nickels can be cut using most conventional cutting processes. Plasma-arc cutting is fast, accurate and economical. Laser and abrasive water jet cutting are also possible The machinability rating of 70 30 copper-nickel alloy is 20%.

70 30 CuNi Welding

Copper Nickel Alloys can be easily joined by soldering, brazing and a variety of welding methods such as gas shielded arc welding, spot welding, coated metal arc welding, butt welding, seam welding, brazing, soldering and oxyacetylene welding processes.

70 30 CuNi Corrosion Resistance

Copper-nickel Alloys have good resistance to chloride pitting and crevice corrosion. They have excellent corrosion resistance against moisture, non-oxidising acids, alkalis and salt solutions, organic acids and to gases such as oxygen, chlorine, hydrogen chloride, hydrogen fluoride, sulphur dioxide and carbon dioxide. It is found that the corrosion rates of CuNi alloys are 0.02-0.002mm/year in sea-water.

Services We Offer

Documentation

Documentation is a very important part of the products we supply, and we work continuously to enhance the efficiency of the document-handling process without compromising quality of the product. Documents provided along with the shipment include Certificate of Origin, Material Test Certificate as per EN 10204 3.1 and 10204 3.2, NACE MR10103 and NACE MR0175 certified Test Certificates.

Quality Assurance

Copper Nickel Bars are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.

Material Testing

PMI Testing, Ultrasonic Test, Mechanical Testing, Spectro Tests for Chemical Analysis of the grade, Flaring Test, IGC, etc. are some of the tests conducted at our facility. We welcome stage wise inspection from any of your representative or third party inspection agencies.

Packing and Delivery

The product is wrapped and packed in wooden crates or carton boxes. Our primary goal is to deliver quality products in time, no matter where the client is located.
